plotChromaticity
Plot color reproduction on chromaticity diagram
Description
plotChromaticity(

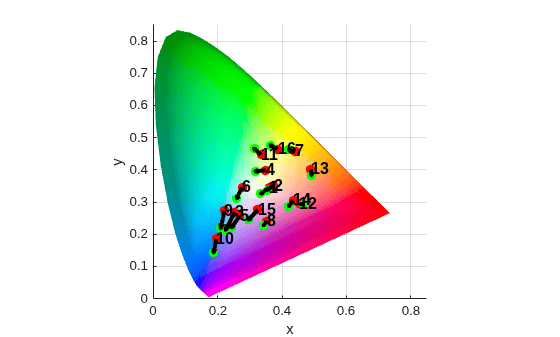

plots on a
chromaticity diagram the measured and reference colors,
colorValues
)colorValues
, for color patch regions of interest (ROIs) in
a test chart.
plotChromaticity
plots an empty chromaticity diagram.
plotChromaticity(___,
adjusts aspects of the display using name-value arguments.Name=Value
)
Examples
Input Arguments
Tips

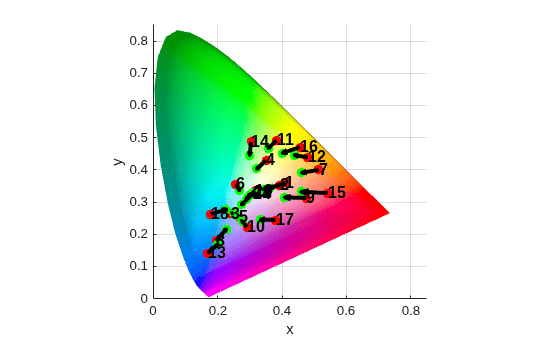

The reference L*a*b* values of the
colorValues
measured from acolorChecker
object are for the "After November 2014" version of the ColorChecker® chart. The white point of the reference values is the CIE standard illuminant D50.
Version History
Introduced in R2017b
