Charger

Ideal battery charger

Since R2022b

•

Libraries:
Simscape / Battery / Cyclers

Description

The Charger block implements an ideal battery charger. When the signal at the input port, t, changes from a value below 0.5 to a value equal to or greater than 0.5, this block performs constant current charging at the value of the Constant charging current parameter. When the voltage is greater than or equal to the value of the Voltage threshold parameter, this block performs constant voltage charging at the value of the Constant charging voltage parameter until the current is less than or equal to the value of the Current threshold parameter.

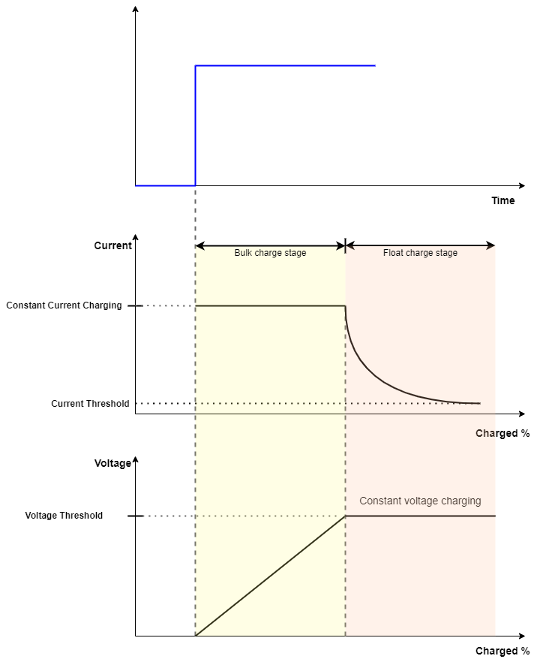

This figure shows the behavior of the Charger block when the t input crosses 0.5:

Examples

New

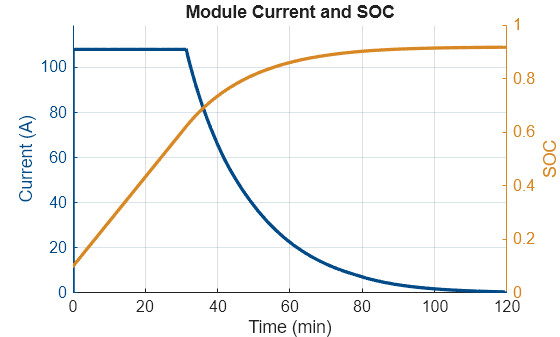

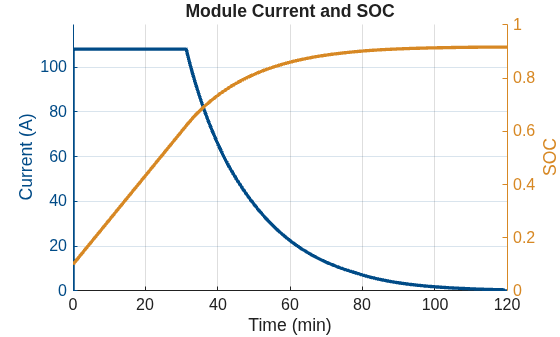

Charge Battery Module with Charger Block

Charge a battery module using a constant-current step followed by a constant-voltage step. This is a CC-CV profile. The battery simulation utilizes a Simscape™ Battery™ Charger block. At the start of the simulation, the battery module has a state of charge (SOC) of 10%. The Charger block performs a constant-current (CC) charging until it reaches the predefined module voltage limit of 4.1 V. The block then switches to a constant-voltage (CV) control step where the current gradually decreases until it reaches a threshold of 0.5 A, specified in the Current Threshold parameter. The charging procedure stops once the current reaches the designated threshold.

Since R2024a

Open Live Script

Ports

Input

t — Trigger, unitless

physical signal

Physical signal input port that controls the charging behavior of the block.

Conserving

+ — Positive terminal

electrical

Electrical conserving port associated with the positive terminal of the charger.

- — Negative terminal

electrical

Electrical conserving port associated with the negative terminal of the charger.

Parameters

Constant charging current — Constant charging current

5 A (default)

Value of the constant charging current at which the block charges a battery.

Voltage threshold — Voltage threshold for constant current charging

12 V (default)

Threshold at which the block stops performing a constant current charging on the battery.

Constant charging voltage — Constant charging voltage

12 V (default)

Value of the constant charging voltage at which the block charges a battery.

Current threshold — Current threshold for constant voltage charging

0.5 A (default)

Threshold at which the block stops performing a constant voltage charging on the battery.

Extended Capabilities

C/C++ Code Generation
Generate C and C++ code using Simulink® Coder™.

Version History

Introduced in R2022b
